Duet

Duet 3 Tool Board 1LC

Duet 3 Tool Board 1LC

Regular price $95.00 NZD
Regular price Sale price $95.00 NZD
Sale Sold out
Tax included.

Bits4bots is an authorised reseller of Duet3d products

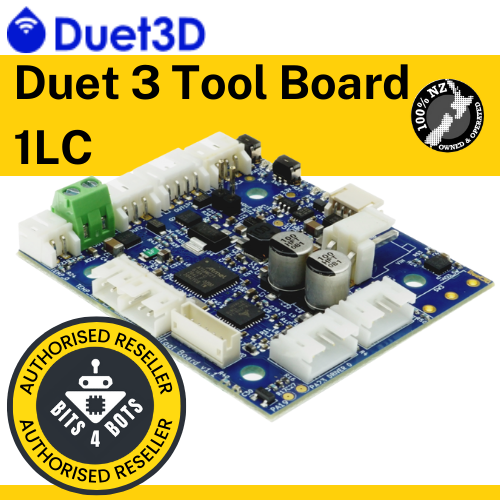

The Duet 3 Tool board is a CAN-FD connected expansion board for the Duet 3 Mainboard that is designed to provide complete control for a direct drive extruder, associated fans, fimanet sensor and probe. The mounting holes and connector locations match an e3d Hermera, however it can be used with other direct drive extruders with suitable brackets. The stepper motor, heater, temperature sensor, fans and optionally Z probe and filament monitor all connect to the Duet 3 Tool board, leaving only CAN-FD and power wires to run back to the Duet 3 Mainboard or Tool Distribution Board.

Choose the 4 tool boards with a Duet 3 Tool Distribution board bundle for a reduced price, perfect for tool changers. The bundle option comes with connector packs for the tool boards and Duet 3 Tool Distribution board included as standard

The connector pack includes the following:
* JST PH housings + crimps for the Driver 0, OUT1, 2, IO 0,1,2 and Temp connectors
* 4-way JST ZH tail 100mm+ with plug (CAN in)
* 2-way JST VH housing & crimps
* White single ferrules for heater screw terminals

FEATURES
Processor

ARM Cortex M0+ processor running at 48MHz.

Connectivity

CAN-FD interconnect to main controller board and other Toolboards or expansion boards.

Stepper Driver

One TMC2209 stepper driver with stall detection and stealthChop.
Maximum output current 1.6A peak, 1.1A RMS.

High current outputs

1x 5A rated output for the hot-end heater (60W at 12V VIN,120W at 24V VIN, 24V recommended).

Medium current outputs

One 3-wire fan output (also accepts 2-wire fan).
One 4-wire fan output (also accepts 2-wire fan).

IO

Two thermistor or PT1000 inputs. One uses a 16-bit ADC for high resolution reading of PT1000 sensors.
One 3-pin filament monitor connector.
One Z-probe connector.
One footprint to mount a ultra subminiture switch.
Two push buttons and indication LEDs.
12 to 32V power input; On-board 12V, 5V and 3.3V regulators.

Firmware

RepRapFirmware 3.x


For more information, follow the link below
https://www.duet3d.com/duet3toolboard1lc
