Reflow Recycled PETG - Pastel Collection 1.75mm

Reflow Recycled PETG - Pastel Collection 1.75mm

Regular price $52.99 NZD
Regular price Sale price $52.99 NZD
Sale Sold out
Tax included.
Colour
Size
Weight

Click here for samples

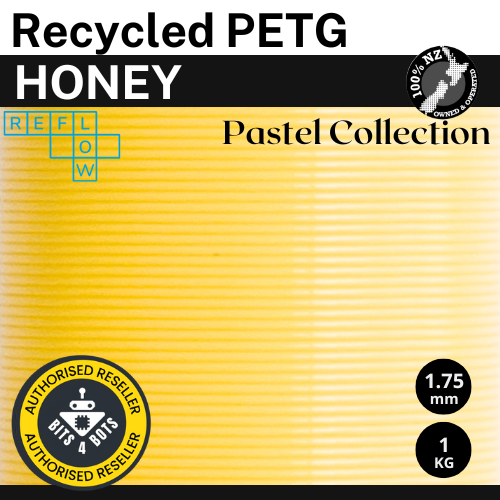

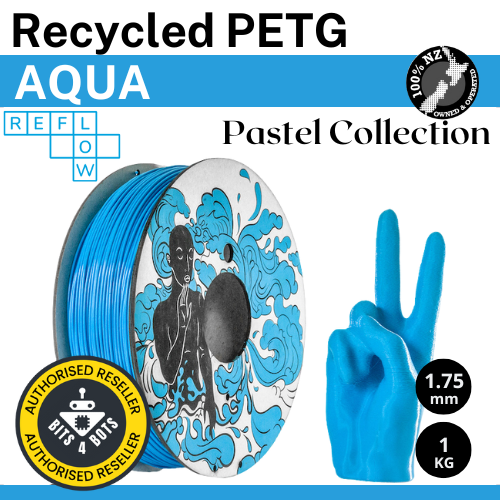

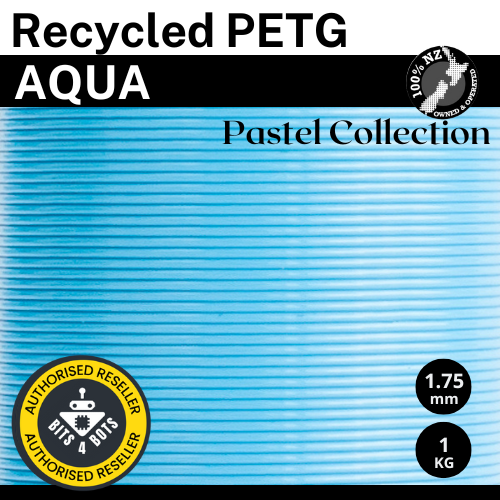

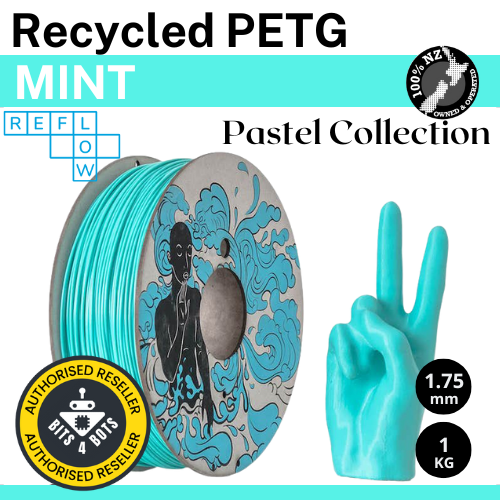

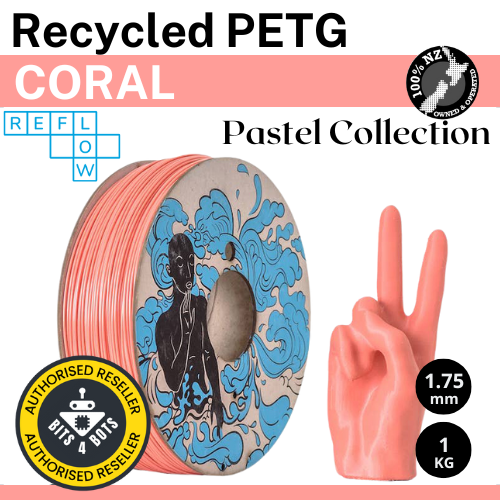

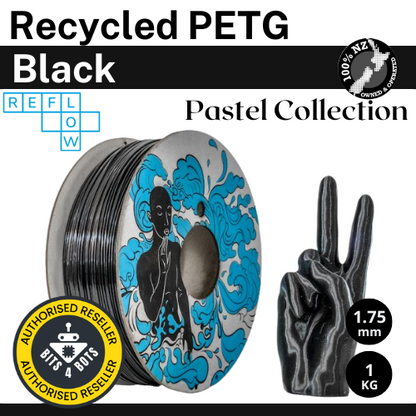

The Pastel Collection

Brighten up your creations with our sustainable Pastel Collection, Aqua, Mint, Coral and Honey. This set of vibrant colours complement each other beautifully and sit well with their more traditional family members, Jet Black and Snow White. Perfect for turning your designs into a range of well balanced, eye catching products.

Our flagship R-PETG is sourced from leading local recyclers. It’s durable and easy to use, with exceptional visual and mechanical performance.

Recycled with care
We tackle plastic pollution while you create beautiful work with no compromise on quality
Tested by the best
Our recycled materials have been put to the strictest of performance tests and pass with flying colours
Optimal performance
We go the extra mile to make our materials universally compatible and offer you the support you need

rPETG. The strong, silent type.
PETG is a Glycol Modified version of Polyethylene Terephthalate (PET). It has the best of both worlds, combining the functionality of ABS and the easy printing of PLA in one material. It’s also a highly common plastic in recycling ecosystems globally, so we can consistently source great quality streams.

Great strength and impact resistance

High temperature tolerance

Excellent visual qualities

Source Traceability
PETG is an established plastic type, frequently used in the production of beverage, food and liquid containers. We source our rPETG from a highly consistent stream of high quality medical waste, working with one of the most established recyclers in the EU.

TECHNICAL DATA SHEET
Name : Recycled PETG
Chemical name : Polyethylene Terephthalate - Glycol Modified
Source of plastic : The Netherlands

FILAMENT SPECIFICATIONS

Diameter : 1.75 mm. ±0.05mm
Roundness : ≥ 98%
Net filament weight : 1 KG
Filament length : ~357m

PRINTER SETTING RECOMMENDATION
Nozzle temperature : 225ºC ±10ºC
Bed temperature : 75ºC ±5ºC
Bed modification : glue / hairspray
Fan speed : 30 - 100% (varies based on print geometry)
Print speed : 30 - 50 mm/s
Retraction distance : 10 mm
Retraction speed : 35-45 mm/s
Drying recommendation : 55°C for 3 to 4 hours in a hot air or vacuum oven

MATERIAL PROPERTIES

Unit Value Method
Density g/cm3 1.27 ASTM D1505
Izod Impact strength kJ/m2 6.2 ISO 180 @23ºC
Tensile stress at yield MPa 50 ISO 527
Vicat softening temperature ºC 85 ASTM D1525
Deflection temperature MPa 64 ASTM D648 @1.82 MPa
Elongation at yield % 100 ISO 527
Melt flow rate (225 °C/1.20 kg) g/10 min 13 ISO 1133-2
Glass transition ºC 79.2 ISO 11357-2


MECHANICAL PROPERTIES

Unit Value Method
Tensile modulus MPa 1730±203 ISO 527
Tensile strength MPa 38.4 ISO 527
Tensile stress at break MPa 36.9 ISO 527
Tensile strain at break % 3.3 ISO 527
Flexural modulus MPa 1772±32 ISO 178
Flexural strength MPa 63.6 ISO 178
Flexural stress at break MPa 58.1 ISO 178
Flexural strain at break % 4.2 ISO 178


SAMPLE PREPARATION AND TESTING CONDITIONS
Sample preparation conditions:
Ultimaker 2+ with 0.4 mm nozzle was applied for preparing both tensile
and flexural specimens.
Line width: 0.35 mm | layer height: 0.2 mm | printing speed: 20 mm/s | retraction distance and speed: 9 mm and 35 mm/s | printing temperature: 230 ºC | fan speed: 40% | infill percentage: 100% | outline overlap: 35%
Testing conditions:
Five samples were tested and the value shared was the average value.
For tensile specimens, they were printed flatly (x-y direction ) and the printing direction
was in line with the tensile stretching direction. As for the flexural specimens, the printing direction was perpendicularly to the test direction.

DISCLAIMER
The values and recommendations provided herein are given or accepted at your own risk. In view of variations in maintenance, processing, and neither Reflow nor its a"liates make any warranty relating to it or because of it. Neither Reflow nor its a"liates shall be responsible for the use of this information, or of any product, method or apparatus mentioned, and you must make your own determination of its suitability and completeness for your own use, for the protection of the environment, and for the health and safety of your employees and purchasers of your products. No warranty is made of the merchantability or fitness of any product; and nothing herein waives any of
Reflow’s conditions of sale. Specifications are subject to adaptation without prior notice.
