E3D V6 Plated Copper Volcano Upgrade Kit

E3D V6 Plated Copper Volcano Upgrade Kit

  • $100.00

Only 1 left!

Bits4bots is an authorised reseller of E3D products

Print big and fast! The plated copper Volcano upgrades your V6 or Aero HotEnd to print bigger, faster, and stronger parts. Easily swap your V6 heater block and nozzles to Volcano for large-scale 3D printing.

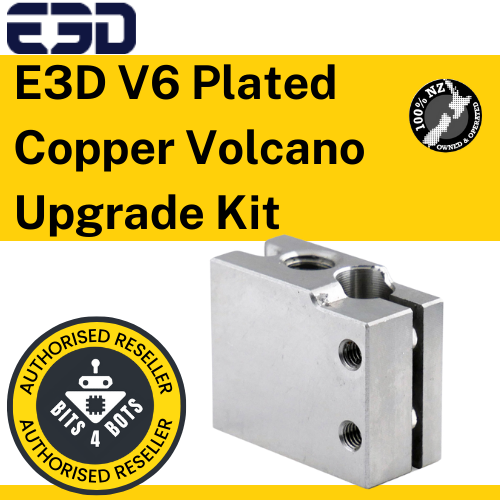

lated Copper-Alloy Volcano Heater Block

These blocks are engineered for ultimate high temperature performance. Made from a special high temperature copper-alloy with a softening point of well above 500C (compared to aluminium blocks which begin to lose integrity beyond 350°C), and much-increased thermal conductivity these copper blocks are perfect for high temperature applications while working perfectly with everyday filaments like PLA, ABS and spoolWorks EDGE.

In addition to high temperature performance these blocks have an advanced nickel based plating, this plating considerably reduces the adhesion of plastic to the block. This is great for everyday filaments keeping things clean and shiny, but is particularly important at temperatures above 300°C where a silicone sock can't be used.

A plated copper nozzle is included for the ultimate extrusion pairing!

Why Copper?

Copper has more than 3x the thermal conductivity of brass, and the copper alloy has been plated to eliminate the oxidation that occurs in copper at high temperatures. A small side effect is that the copper's high thermal mass will also increase heat-up times, but will provide a tighter temperature control.

This copper-alloy is very temperature resilient, and will not start to soften or anneal until way beyond 500°C. It's perfect for the high-temperature printing that aluminium heater blocks can't handle.

Key features:

- Reduced stick plating

- Max temperature: 285°C

- Upgradable temperature: 500°C



Kit includes:

- 1 x Plated copper volcano HeaterBlock

- 1 x Fixings kit

- 1 x 0.8mm plated copper volcano nozzle 1.75mm or 2.85mm

- 1 x 30W standard heater cartridge 12V or 24V

- 1 x Thermistor cartridge

- 1 x Thermistor cartridge extension cable

- 1 x Thermal compound

- 1 x Cable tie

For more information, follow the link below
https://e3d-online.com/products/v6-plated-copper-heater-block
