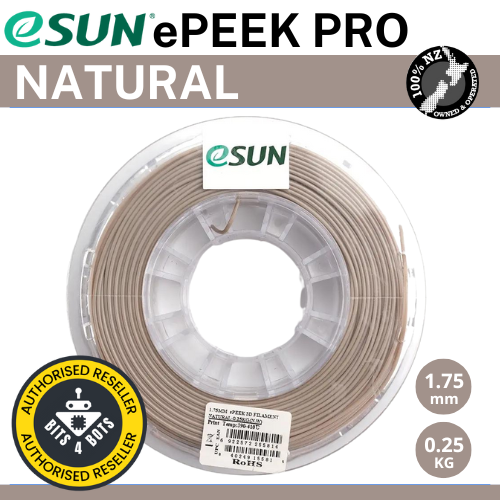

eSun Peek Pro
eSun Peek Pro
Couldn't load pickup availability
*Not subject to any discounts
Special plastic materials with excellent mechanical and thermal properties; high strength, high toughness, impact resistance; self-lubricating and wear-resistant properties, printable mechanical gears; flame retardant; resistant to corrosion by most chemical reagents and solvents; high temperature resistance Performance, the heat distortion temperature is as high as 205℃, and it can be used for heat-resistant parts.
Characteristics
- Chemical resistance
- Heat resistance
- Flame retardant
- High toughness
- High impact resistance
- Abrasion resistance
Please Note
- The shrinkage of ePeek Pro material is high. So plsease use printer which has chamber to print the ePeek Pro filament.
- eEPEEK Pro is prone to warping when printing. Please increase the chamber temperature and plate temperature ; choose a bottom plate with high flatness and high temperature resistance; Leveling is required before printing.
- Uneven crystallization of ePEEK Pro material may occur during the printing process. Try to increase the chamber temperature and reduce the cooling speed of the PEEK material; if necessary, an oven is required for post-annealing. Annealing after printing can improve mechanical performance. Put it in the oven 150 ℃/1h→200℃/1h→150℃/0.5h.
DISCLAIMER: BITS4BOTS LIMITED nor any of its Subsidiaries has any material liability (whether known or unknown, whether asserted or unasserted, whether absolute or contingent, whether accrued or unaccrued, whether liquidated or unliquidated, and whether due or to become due) arising out of any injury to individuals or property as a result of the ownership, possession or use of any product manufactured, sold, leased or delivered by BITS4BOTS LIMITED or any of its Subsidiaries.
| Filament Properties Table | |
|---|---|
| 3D PRINTING FILAMENT | ePEEK Pro |
| Density(g/cm3) | 1.3 |
| Heat Distortion Temp(℃,0.45MPa) | 205 |
| Melt Flow Index(g/10min) | 14.3(190℃/2.16kg) |
| Tensile Strength(MPa) | / |
| Elongation at Break(%) | 30 |
| Flexural Strength(MPa) | / |
| Flexural Modulus(MPa) | / |
| IZOD Impact Strength(kJ/㎡) | / |
| Durability | 10/10 |
| Printability | 6/10 |
| Recommended printing parameters | |
| Extruder Temperature(℃) | 400 – 450℃ Recommended temperature430℃ |
| Bed temperature(℃) | 130°C |
| Fan Speed | 0% |
| Printing Speed | 40 – 60mm/s |
| Heated Bed | Required |
| Recommended Build Surfaces | PVP solid glue, high temperature glue |
| Feature | |
| Flexible | —— |
| Elastic | —— |
| Impact Resistant | —— |
| Soft | —— |
| Composite | —— |
|  UV Resistant | √ |
| Water Resistant | √ |
| Dissolvable | —— |
| Heat Resistant | √ |
| Chemically Resistant | √ |
| Fatigue Resistant | √ |
| Need drying | √ |
| Heated Bed Required | √ |
| Print recommend | Drying at 70℃/>6h, try to increase the constant temperature chamber and the bottom plate temperature, and strictly adjust the level before printing |
