eSun

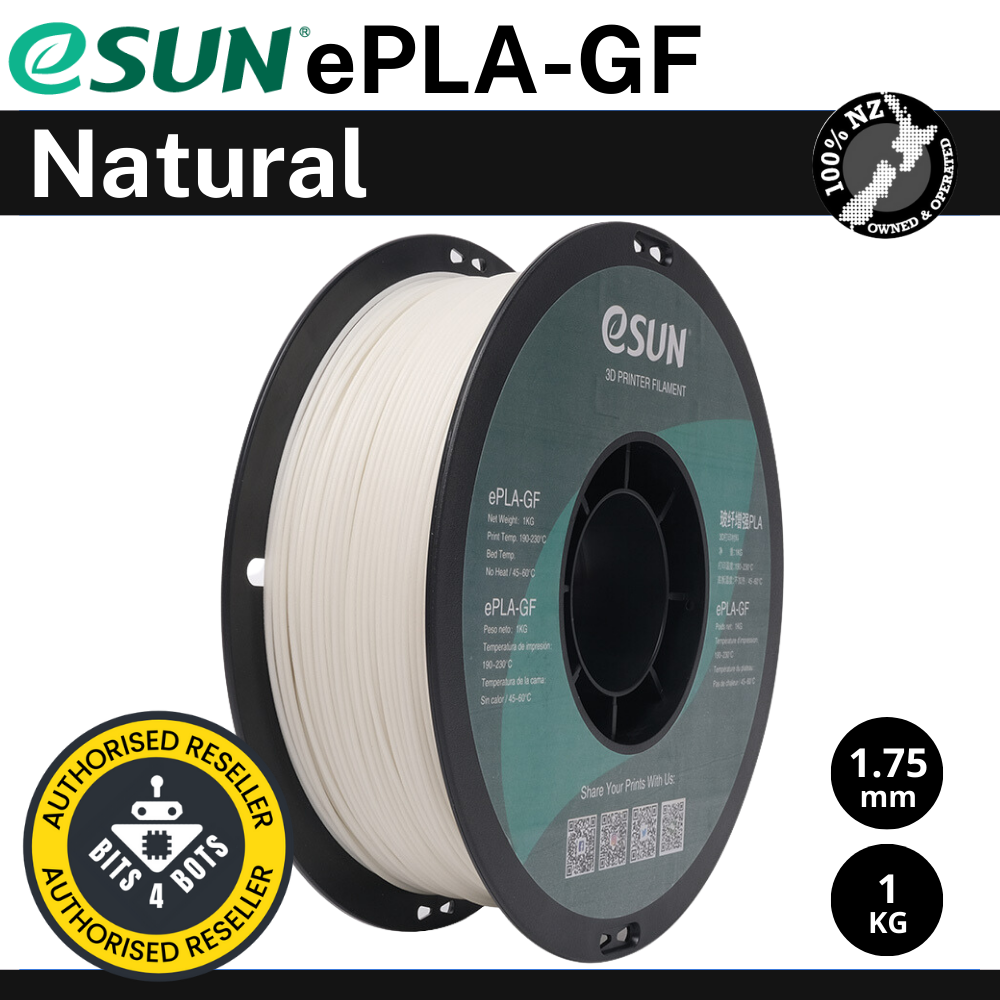

eSun PLA-GF (Glass Fiber)

eSun PLA-GF (Glass Fiber)

Regular price $49.99 NZD
Regular price Sale price $49.99 NZD
Sale Sold out
Tax included.
Colour
Size
Weight

The printing filament developed on the basis of PLA is added with 16% glass fiber, which greatly enhances the rigidity and impact resistance of ordinary PLA. The bending modulus is as high as 4400MPa, which is highly rigid and not easy to distort;

Description

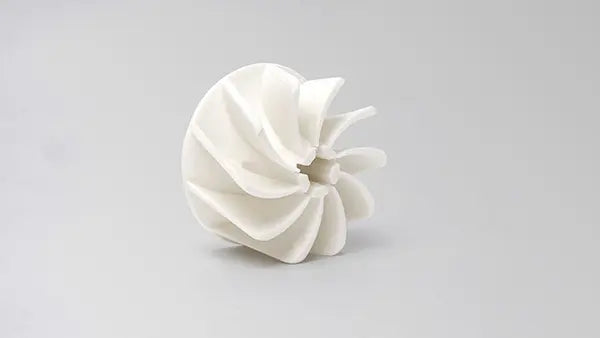

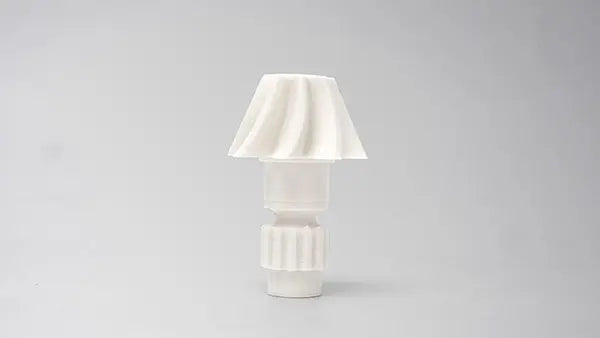

High impact resistance and good printability of PLA; Suitable for mechanical parts prototypes with requirements for rigidity and impact resistance; Wear-resistant performance makes it suitable for printing gears and can be used as temporary functional parts.

Sellingpoint

High rigidity
High impact resistance
High wear resistance
Excellent printability

Filament Properties Table
3D PRINTING FILAMENT ePLA-GF
Density(g/cm3) 1.31
Heat Distortion Temp(℃,0.45MPa) 56
5/10
Melt Flow Index(g/10min) 6.36(190℃/2.16kg)
Tensile Strength(MPa) 59.27
7/10
Elongation at Break(%) 7.99
1/10
Flexural Strength(MPa) 85.01
8/10
Flexural Modulus(MPa) 4414.89
8/10
IZOD Impact Strength(kJ/㎡) 10.16
2/10
Durability 4/10
Printability 9/10
Recommended printing parameters
Extruder Temperature(℃) 190 – 230℃
Recommended temperature:215℃
Bed temperature(℃)  45 – 60°C
Fan Speed  100%
Printing Speed  40 – 100mm/s
Heated Bed  Optional
Recommended Build Surfaces Masking paper, PVP solid glue, PEI



1. ePLA-GF line has strong rigidity and is not easy to bend. In the feeding pipeline, excessive bending of filament should be avoided as far as possible

2. ePLA-GF is very easy to grind the nozzle and extruder gear. It is recommended to use hardened steel nozzle or ruby nozzle. If conditions permit, hardened steel extruder gear can be selected. If the printing time is long and the plug occurs, the throat and nozzle need to be replaced

3. The blowing fan can be properly turned off to improve the model strength
