Reflow
Reflow Recycled PLA - The Mandala Collection
Reflow Recycled PLA - The Mandala Collection
Couldn't load pickup availability
Click here for samples

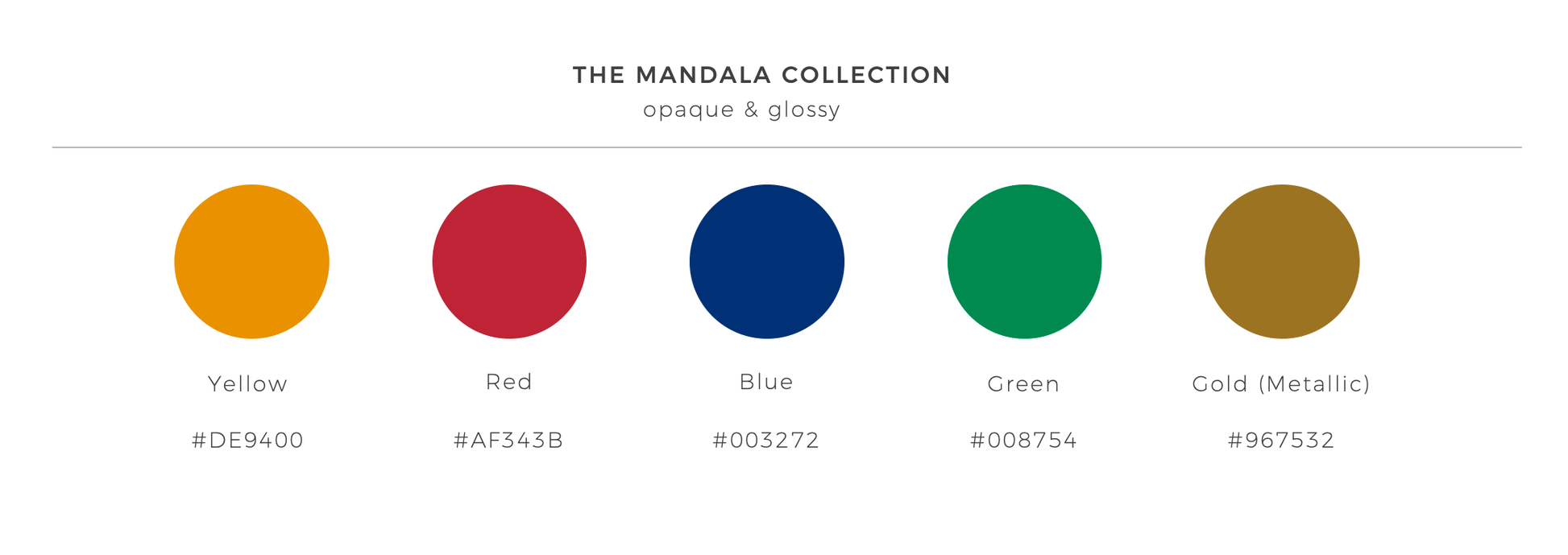

The Mandala Collection
Our rPLA is a bioderived material originally produced from corn starch but recycled again from food packaging waste sourced in the Benelux region. It’s easy to print with, durable with excellent print quality.
98%-100% Recycled
Our natural PLA is 100% recycled material, while black and white filaments contain 2% or less colouring masterbatch
Tested by the best
This material has been tested by an experienced group of 3D printing designers, innovators and resellers and passed with flying colours.
Optimal performance
Reflow rPLA exhibits excellent adhesion to printing bed, ease of printing and superior layer adhesion.
rPLA. Bioderived, Easy to Print with Impeccable Surface Finish
Ease of Printing
Great Layer Adhesion
Superb Surface Finish
Source Traceability
PLA is a highly versatile biopolymer that is economically efficient to synthesise and possesses biodegradable capabilities under the right conditions. It has a range of common applications from cardiovascular implants or PPE in healthcare as well as uses like plastic films, bottles and straws in packaging. Our rPLA is sourced from a consistent stream of food packaging waste, collected and pelletised by a leading recycler in the Benelux region.
Name : Recycled PLA
Chemical name : Recycled polylactide
Source of plastic : Benelux
Description : Reflow PLA filament is made from mechanically recycled PLA
which are biodegradable and renewable. It is safe, eco-friendly,
easy to print, and fits requirements for both novices and gurus.
FILAMENT SPECIFICATIONS
Diameter : 1.75 mm. ±0.05mm
Roundness : ≥ 98%
Net filament weight 1 KG
Filament length : ~357m
PRINTER SETTING RECOMMENDATION
Try our quick start guide to help get the best results. These settings are a good steer for printing with this material across a variety of devices. However, optimum settings may vary between printers.
Nozzle temperature : 215 - 225ºC
Bed temperature : 40 - 70ºC
Fan speed : 0 - 100% (varies based on print geometry)
Print speed : 30 - 40 mm/s, up to 150 mm/s
Retraction distance : 4 - 10 mm
Retraction speed : 35-45 mm/s
Drying recommendation : 50 °C in a hot air or vacuum oven for 5 to 8 hours
MATERIAL PROPERTIES
| Unit | Value | Method | |
| Density | g/cm3 | 1.24 | ASTM D1505 |
| Izod Impact strength | kJ/m2 | 4.5 | ISO 180 @25ºC |
| Tensile madulus | MPa | 3000 | ISO 527 |
| Flexural modulus |
MPa | 3120 | ISO 178 |
| Melt flow rate (190 °C/2.16 kg) | g/10 min | 3-7 | ISO 1133 |
| Glass transition | ºC | 60.9 |
ISO 11357, 10ºC/ min |
| Peak melting temperature | ºC | 164.3 | ISO 11357, 10ºC/ min |
MECHANICAL PROPERTIES
| Unit | Value | Method | |
| Tensile modulus | MPa | 3105±53.16 |
ISO 527 |
| Tensile strength | MPa | 59.2 |
ISO 527 |
| Tensile stress at break | MPa | 59.1 |
ISO 527 |
| Tensile strain at break | % | 2,16 | ISO 527 |
| Flexural modulus | MPa | 3200±91 | ISO 178 |
| Flexural strength | MPa | 87.2 | ISO 178 |
| Flexural stress at break | MPa | 84.6 | ISO 178 |
| Flexural strain at break | % | 3.6 | ISO 178 |
SAMPLE PREPARATION AND TESTING CONDITIONS
Sample preparation conditions:
Ultermaker 2+ with 0.4 mm nozzle was applied for preparing both tensile and flexural
specimens.
Line width: 0.35 mm | layer height: 0.2 mm | Printing speed: 15 mm/s |
retraction distance and speed: 4 mm and 40 mm/s | printing temperature : 220 ºC
Testing conditions:
Five samples were tested and the value shared was the average value.
For tensile specimens, they were printed flatly (x-y direction ) and the printing direction
was in line with the tensile stretching direction. As for the flexural specimens, the printing direction was perpendicularly to the test direction.
DISCLAIMER
The values and recommendations provided herein are given or accepted at your own risk. In view of variations in maintenance, processing, and neither Reflow nor its a"liates make any warranty relating to it or because of it. Neither Reflow nor its a"liates shall be responsible for the use of this information, or of any product, method or apparatus mentioned, and you must make your own determination of its suitability and completeness for your own use, for the protection of the environment, and for the health and safety of your employees and purchasers of your products. No warranty is made of the merchantability or fitness of any product; and nothing herein waives any of
Reflow’s conditions of sale. Specifications are subject to adaptation without prior notice.
