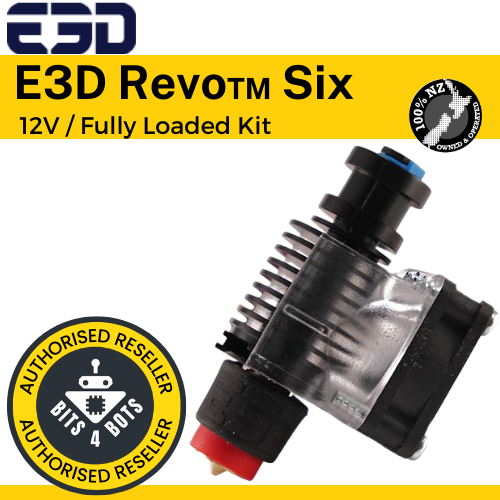

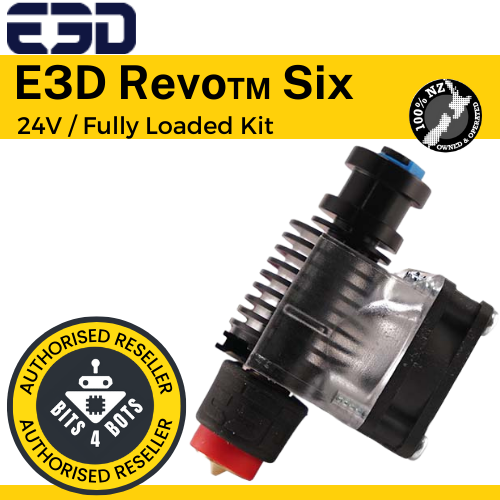

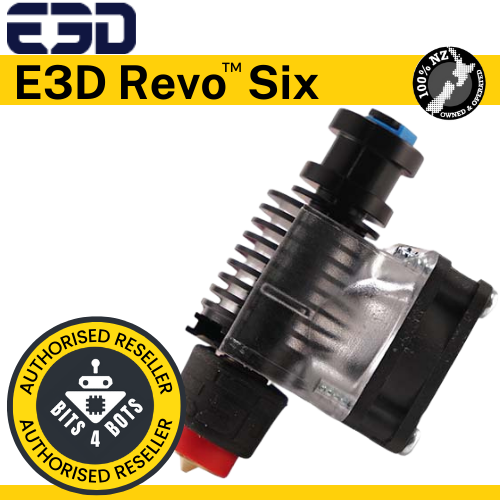

E3D Revo™ Six
E3D Revo™ Six
Bits4bots is an authorised reseller of E3D products
No machine redesign. Revo Six is a top choice if you want to update your old E3D V6 setup to the latest generation of E3D HotEnd technology. It has the same height, the same diameter, and the same groove mount as the E3D V6, so it drops straight into V6-fitted machines without the hassle of redesigning print head mounts and accessories. Just fit it, connect the Revo HeaterCore, and you’re ready to 3D print.
Ready for Revo. Revo Six is designed to work with Revo Nozzles, so you can perform nozzle swaps with your fingers at room temperature without complex tools or hot tightening. Each Revo Nozzle is factory sealed, making it much simpler to use and more reliable than most HotEnd technology available today.
Enhanced performance. Revo Six uses a Revo HeaterCore, our latest HotEnd heating and sensing architecture. It reaches temperature much faster than a traditional aluminium HeaterBlock, and it’s much safer: a positive temperature coefficient (PTC) means the HeaterCore can’t melt at extreme temperatures, reducing hazards in the event of a thermal runaway.
A new look. An anodised black heat sink distinguishes Revo Six from its predecessor, and every unit ships with a premium crystal-clear fan duct so your machine will stand out from the crowd.
Please note:
- You may need to adjust your Z offset when changing nozzles.
Compatible with:
Prusa i3 MK2/ MK3 variants (make sure you select the correct voltage for your setup)
Key features:
- Max temp: 300°C
- Filament diameter: 1.75mm
- Groove mount
- Voltage: 12V or 24V
- Power: 40W
Kit includes:
- 1 x Revo Six heatsink
- 1 x Revo HeaterCore 12V or 24V
- 1 x Spring
- 1 x Extension cable kit
- 1 x 100mm PTFE tube
Single nozzle kit:
- 1 x 0.40 Brass Revo Nozzle
Fully loaded nozzle kit:
- 1 x 0.25, 0.40, 0.60 & 0.80 Brass Revo Nozzles
For more information, follow the link below
https://e3d-online.com/products/revo-six
