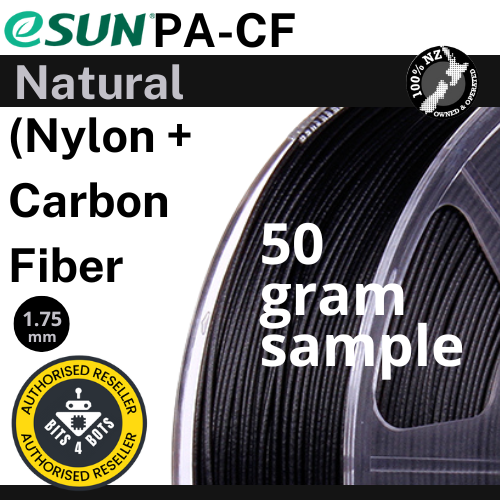

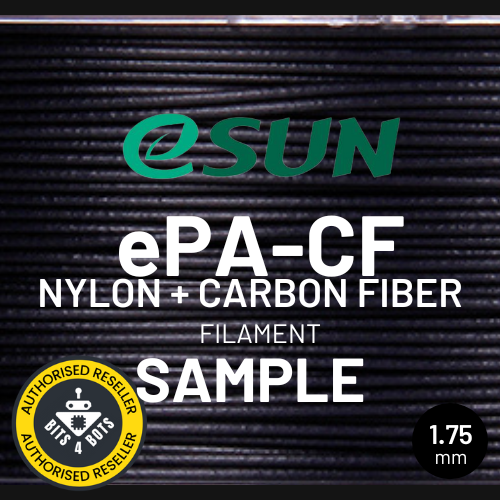

Sample - eSun ePA-CF (Nylon + Carbon Fiber) 1.75mm Filament

Sample - eSun ePA-CF (Nylon + Carbon Fiber) 1.75mm Filament

Regular price $15.00 NZD
Regular price Sale price $15.00 NZD
Sale Sold out
Tax included.
Colour
Size
Weight

Want to try a colour or material first before you commit to a full roll? Here is your chance to get a 50 gram sample of it first to give it a go.

  • These are off cuts from a full spool so do have a tendency to tangle. We recommend re spooling them onto an old spool.
  • These spools are exposed to moisture. We recommend drying the filament out first before use.

Samples not available for discount

Developed based on nylon 6/66 copolymer, adding 20% carbon fiber greatly enhances the strength, rigidity and toughness of nylon, and can replace metal materials in many occasions; Self-lubricating wear resistance makes it suitable for printing gears; High toughness and impact resistance make it suitable for printing durable parts. High temperature resistance, heat deformation temperature up to 155℃; Low shrinkage, it is not easy to warp and crack when printing, and the surface of printed models is matte and delicate.

DOWNLOAD TECHNICAL DATA SHEET HERE.

DOWNLOAD eSun Product Guide HERE.

NOTE:

1. Dry the filaments (70℃/> 12h) before printing to achieve the best printing effect. It is recommended to use them together with eBOX when printing.

2. PA-CF tends to be highly rigid and excessive force while feeding through extruder may cause it to bend and break.

3. It is highly recommended to use hardened steel nozzle while printing with ePA-CF. It can be highly abrasive on standard brass nozzle and cause them to wear out. Similarly, avoid using extruder with brass gears.

Some videos to consider watching to help you get started with printing PA-CF filaments.

https://www.youtube.com/watch?v=xjmwNh4Hqfk

https://www.youtube.com/watch?v=A6Df4I4SXJE

DISCLAIMER: BITS4BOTS LIMITED nor any of its Subsidiaries has any material liability (whether known or unknown, whether asserted or unasserted, whether absolute or contingent, whether accrued or unaccrued, whether liquidated or unliquidated, and whether due or to become due) arising out of any injury to individuals or property as a result of the ownership, possession or use of any product manufactured, sold, leased or delivered by BITS4BOTS LIMITED or any of its Subsidiaries.



 Specification


Diameter: 1.75mm (+/- 0.05mm)
Extrusion Temp 260 ~ 300 C
Build Plate Temp  (OPTIONAL) 80 C


Product Description:

Carbon fiber reinforced nylon filament

High Strength, High Rigidity, Good Toughness, Wear Resisting

Good flame resistance, Flame-retardant Level: UL94-V2;

Print temperature range: 260~300℃

Print Base temperature: 80℃

Print Speed:30-60 mm/s;

Move Speed:90-150mm/s

Carbon Fiber Filled Nylon - 80% Nylon Coupled with 20% Carbon Fiber. High Strength and Rigidity. High Toughness. Wear Resistance. High Precision. Low Shrinkage. Heat Resistance 115°C. Flame Retardance UL94-V2. Compatible with Most of 3D Printers.

Product Features:

  • Printing smoothly, odorlessness, matte finish printing effect.
  • High Strength, High Rigidity, Good Toughness, Wear Resisting, Fitting to 3D print industrial parts.
  • Compared with Nylon, it has lower shrink rate and distortion, high accuracy without warped edge.
  • Stainless steel nozzle shall be needed instead of quick-wear bronze nozzle when using CFRPA filament.
