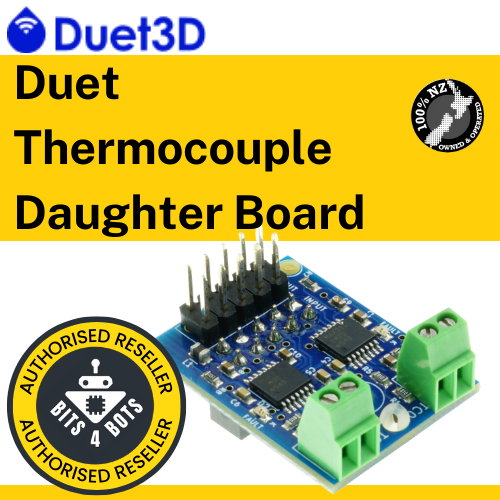

Duet Thermocouple Daughter Board

Duet Thermocouple Daughter Board

  • $60.00

Only 3 left!

Bits4bots is an authorised reseller of Duet3d products

This is a daughterboard specifically designed for the Duet 2 and Duet control boards that allows two Thermocouples to be attached.

The Thermocouple Daughter Board is compatible with all Duet 2 and 3 mainboards, along with the Expansion 3HC.

This board is based on the MAX31856 so several types of thermocouples (K, J, N, R, S, T, E, and B) are supported, The thermocouple type is set in firmware.

We also supply e3d Type K encased thermocouples and compatible V6/Lite heater blocks (see associated products)

FEATURES
Sensor

PT100.

Compatiblity (number of daughterboards/controller)

Duet 3 6HC mainboard (2).
Duet 3 3HC expansion (2).
Duet 3 Mini 5+ (1).
Duet 2 all variants (2).
Duex5 Expansion board (2).


For more information, follow the link below
https://www.duet3d.com/tc_k_daughterboard
